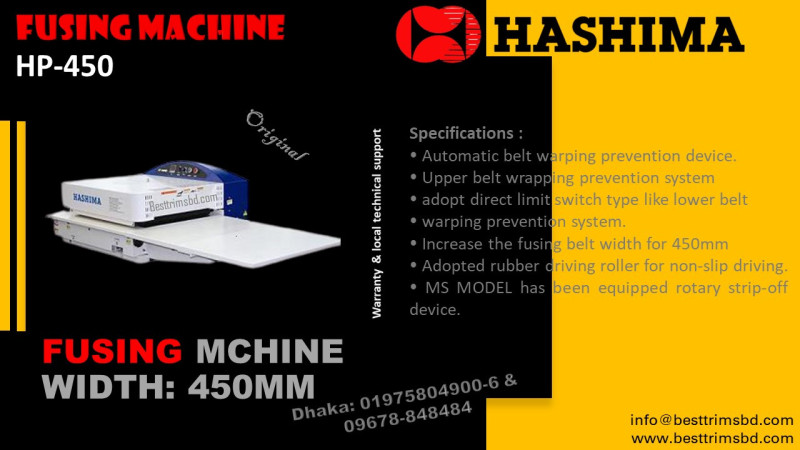

• Item: Hashima Compact Fusing Press
• Brand :  Hashima
• Model : HP-450M
• Heater : 4KW
• Motor : 33W
• Temperature (Max) : 195℃

• Presser（MAX;) 1.5kg/cm2

• Belt Speed（MAX）: 8.7m/minutes

• Heating Time: 5～20 second

• Fusing Width : 450mm

• Size : W：1,660mm , D：880mm , H：490mm

• Weight : 152kg

• Power :  1p 230VAC.
• Made in : Vietnam

●

Specifications

Automatic belt warping prevention device.
Upper belt warpping prevention system
adopt direct limit switch type like lower belt
warping prevention system.
Increase the fusing belt width for 450mm
Adopted rubber driving roller for non-slip driving.
MS MODEL has been equipped rotary strip-off device.
